Telecommunications · T-JT3ZT

Floor Poke-Thru Assembly Detail

Materials

Elements

About this detail

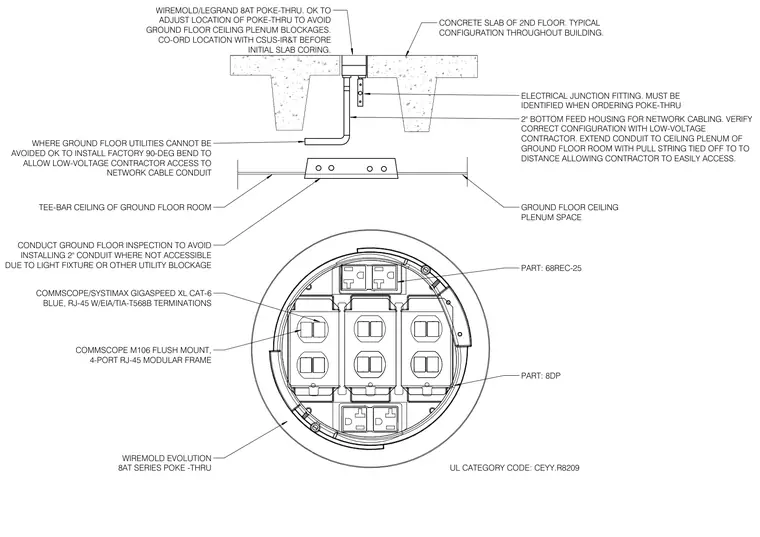

A floor poke-thru assembly installs through the concrete slab of the second floor, connecting to the ground floor ceiling plenum space. The assembly utilizes a Wiremold/Legrand 8AT series poke-thru unit featuring a two-inch bottom feed housing for network cabling, which extends down with a pull string tied off for contractor access. An electrical junction fitting is included and must be identified when ordering the poke-thru. A factory ninety-degree bend can be installed to route the conduit where ground floor utilities or ceiling elements such as tee-bar ceilings block the path. The internal layout includes CommScope M106 flush mount four-port RJ-45 modular frames wired with CommScope/Systimax GigaSpeed XL Cat-6 blue cables with EIA/TIA-T568B terminations, along with parts 8DP and 68REC-25. Field coordination and inspection are required prior to initial slab coring to avoid obstructions.
