Two 8P8C modules provide the minimum connectivity configuration, supplemented by blank filler inserts for any unused module positions. Horizontal cabling routes directly from the outlet to the nearest telecommunications room. All components require typical labeling for identification.

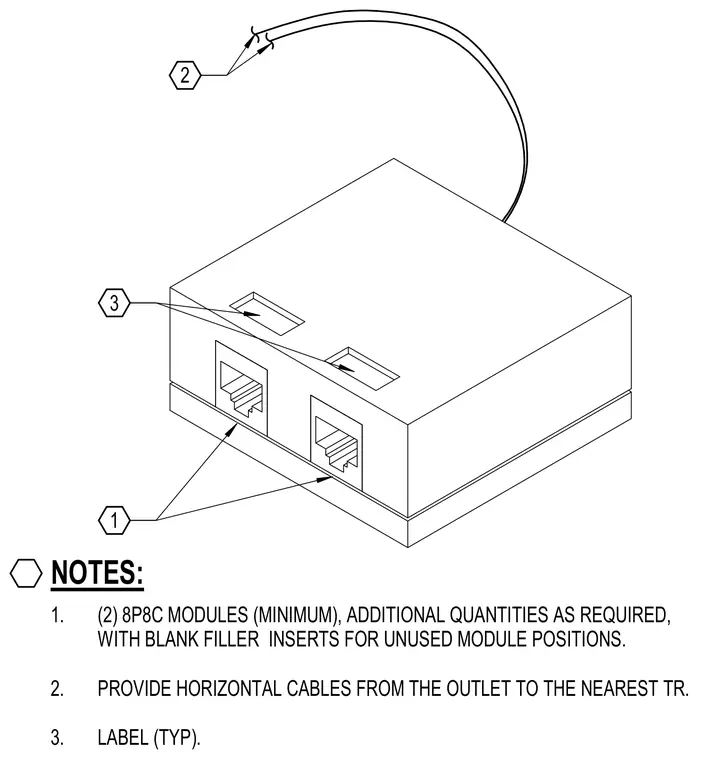

1. (2) 8P8C MODULES (MINIMUM), ADDITIONAL QUANTITIES AS REQUIRED, WITH BLANK FILLER INSERTS FOR UNUSED MODULE POSITIONS. 2. PROVIDE HORIZONTAL CABLES FROM THE OUTLET TO THE NEAREST TR. 3. LABEL (TYP). NOTES: 1 2 3
