About this detail

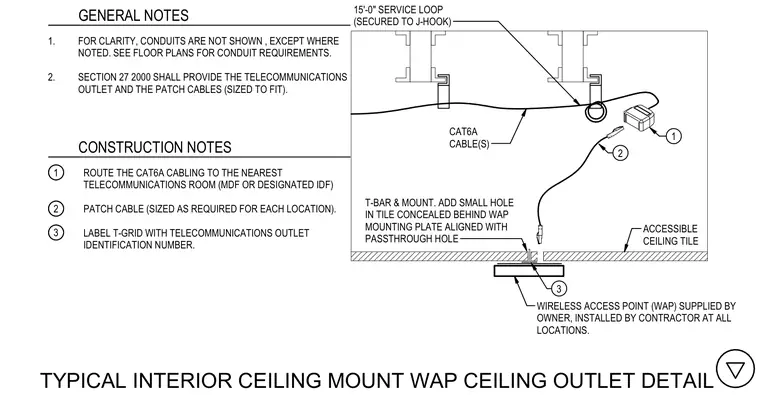

CAT6A cabling routes to the nearest telecommunications room, featuring a fifteen-foot service loop secured to a J-hook above the ceiling grid. The cabling drops down to a patch cable and connects through a T-bar mount with a small hole in the accessible ceiling tile concealed behind the wireless access point mounting plate. The wireless access point is supplied by the owner and installed by the contractor on the ceiling tile, with the T-grid labeled with the telecommunications outlet identification number.
