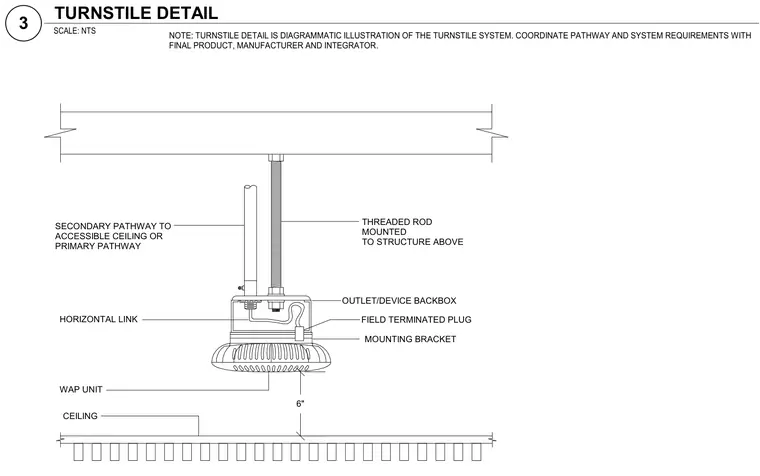

A wireless access point unit is suspended six inches below the ceiling line using a mounting bracket attached to an outlet device backbox. The backbox is supported by a threaded rod mounted directly to the building structure above. A horizontal link connects to a field-terminated plug on the wireless access point unit. A secondary pathway extends upward to an accessible ceiling or primary pathway.
OUTLET/DEVICE BACKBOX 6" FIELD TERMINATED PLUG MOUNTING BRACKET HORIZONTAL LINK WAP UNIT CEILING SECONDARY PATHWAY TO ACCESSIBLE CEILING OR PRIMARY PATHWAY THREADED ROD MOUNTED TO STRUCTURE ABOVE SCALE: NTS 3 TURNSTILE DETAIL NOTE: TURNSTILE DETAIL IS DIAGRAMMATIC ILLUSTRATION OF THE TURNSTILE SYSTEM. COORDINATE PATHWAY AND SYSTEM REQUIREMENTS WITH FINAL PRODUCT, MANUFACTURER AND INTEGRATOR.
