Typical Systems Furniture Floor Box

Elements

About this detail

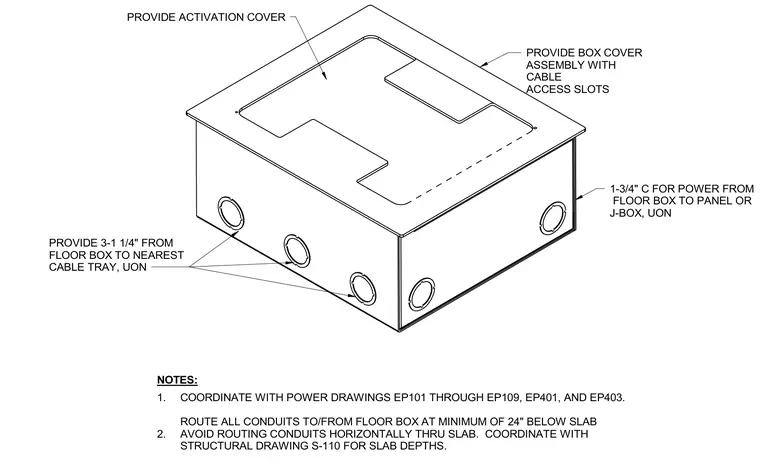

An activation cover is provided on top of the floor box assembly, alongside a box cover assembly featuring cable access slots. Conduit routing requires a three-quarter inch conduit for power running from the floor box to a panel or junction box, unless noted otherwise. A clearance of three and one-quarter inches is maintained from the floor box to the nearest cable tray, unless noted otherwise. All conduits to and from the floor box must be routed at a minimum of twenty-four inches below the slab, avoiding horizontal routing through the slab.
