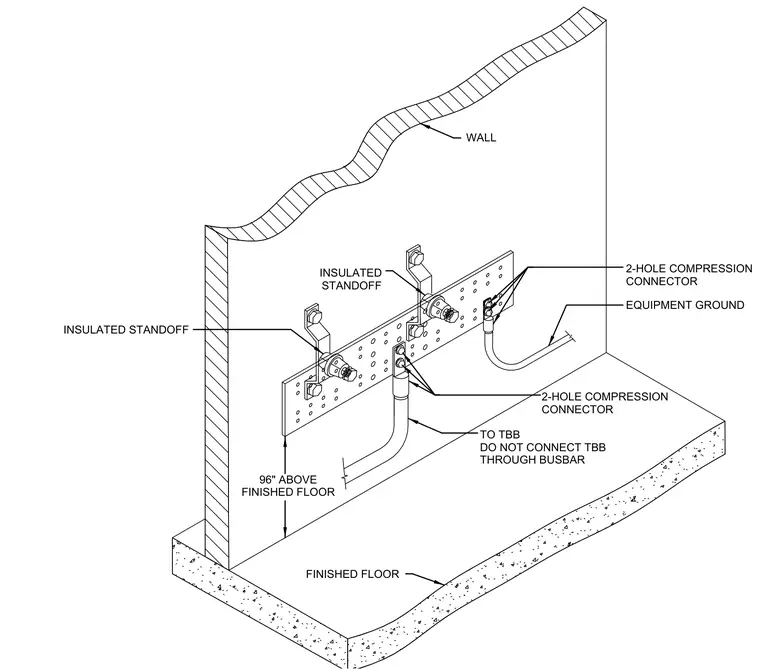

A technology grounding bus bar is mounted to a wall surface at ninety-six inches above the finished floor using insulated standoffs. Equipment ground conductors terminate at the bus bar using two-hole compression connectors. The telecommunications backbone conductor connects directly to the system without passing through the bus bar.
2-HOLE COMPRESSION CONNECTOR FINISHED FLOOR WALL TO TBB DO NOT CONNECT TBB THROUGH BUSBAR 2-HOLE COMPRESSION CONNECTOR EQUIPMENT GROUND INSULATED STANDOFF INSULATED STANDOFF 96" ABOVE FINISHED FLOOR
