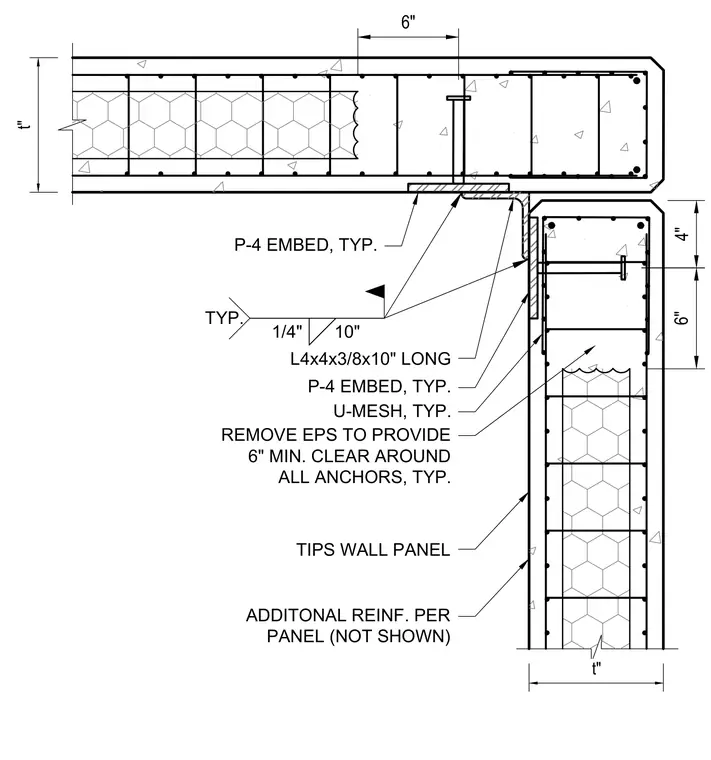

A corner connection between precast concrete wall panels utilizes an L4x4x3/8-inch structural steel angle ten inches long. The angle connects to P-4 embed plates cast into each wall panel. A quarter-inch fillet weld secures the assembly with ten-inch spacing. Expanded polystyrene insulation is removed to maintain a six-inch minimum clearance around all anchors. Additional wall panel reinforcement is provided per panel but not shown.
t" P-4 EMBED, TYP. L4x4x3/8x10" LONG U-MESH, TYP. P-4 EMBED, TYP. t" REMOVE EPS TO PROVIDE 6" MIN. CLEAR AROUND ALL ANCHORS, TYP. 10" 1/4" TYP. 6" 6" TIPS WALL PANEL ADDITONAL REINF. PER PANEL (NOT SHOWN) 4"
