Security Door Hardware and Conduit Routing Detail

Materials

Elements

About this detail

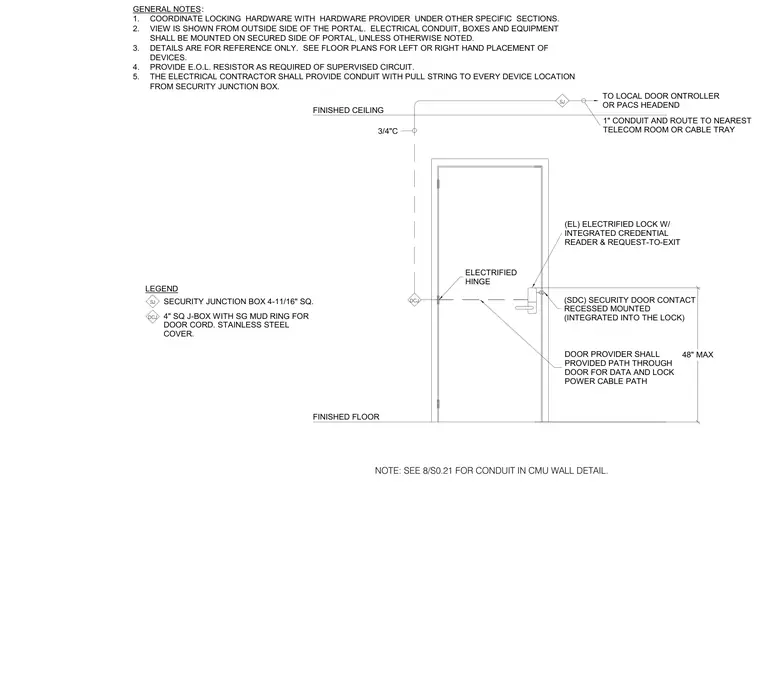

An elevation view from the outside of the portal details the routing of a 3/4-inch conduit from a security junction box to the nearest telecom room or cable tray. The door assembly features an electrified lock with an integrated credential reader and request-to-exit function, an electrified hinge, and a recessed security door contact. A door provider supplies the path through the door for data and lock power cable paths up to 48 inches maximum above the finished floor. The electrical contractor provides conduit with a pull string to every device location from the security junction box.
