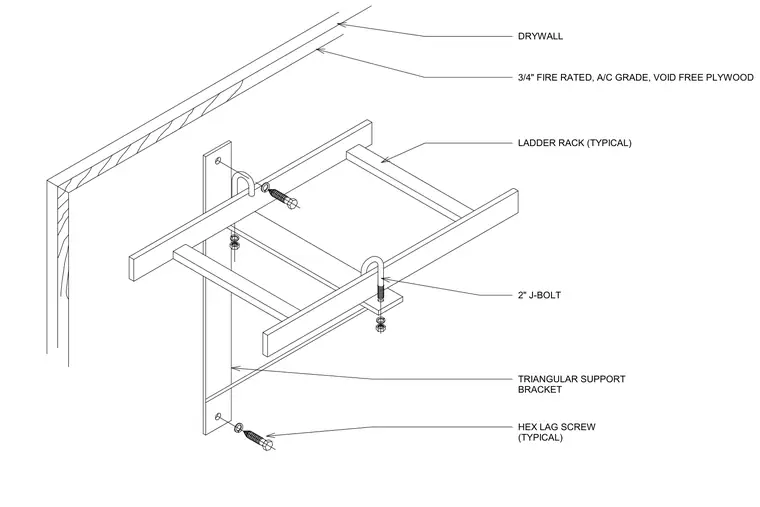

A triangular support bracket mounts to a three-quarter-inch fire-rated, A/C grade, void-free plywood backboard backed by drywall using typical hex lag screws. A telecommunication ladder rack rests on the bracket and secures with two-inch J-bolts, washers, and nuts.
DRYWALL 3/4" FIRE RATED, A/C GRADE, VOID FREE PLYWOOD LADDER RACK (TYPICAL) 2" J-BOLT TRIANGULAR SUPPORT BRACKET HEX LAG SCREW (TYPICAL)
