J-Hooks at Roof Framing

Materials

Steel Timber / Wood

Elements

Beams Walls Roofs Ceilings Reinforcing

Connections

Rebar Splice / Development

About this detail

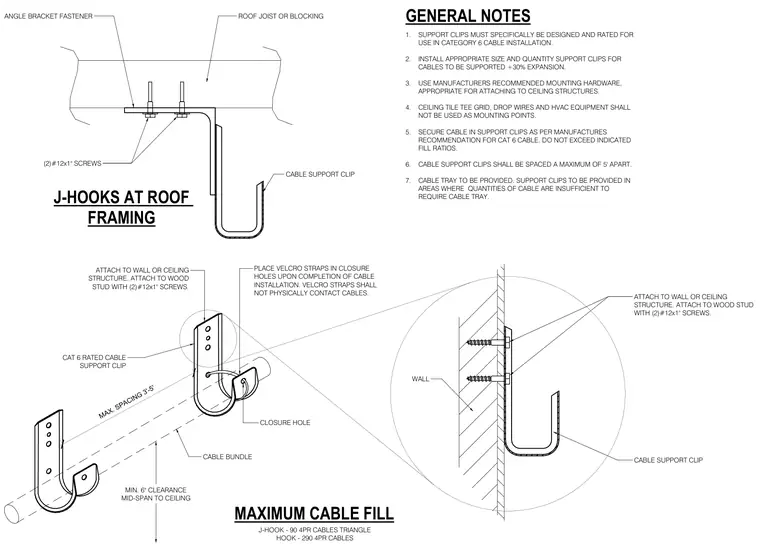

Cable support clips are secured to wood roof framing or blocking using an angle bracket fastener and two number 12 by 1-inch screws. Wall-mounted cable support clips attach directly to wood studs using two number 12 by 1-inch screws. Velcro straps are placed in closure holes upon completion of cable installation to bundle category 6 rated cables without physically contacting them. Support clips are spaced a maximum of 5 feet apart with a maximum spacing of 3 to 5 feet for cable bundles, maintaining a minimum 6-inch clearance mid-span to the ceiling. Ceiling tile tee grids, drop wires, and HVAC equipment are strictly prohibited as mounting points.
