Wall Mounted Furniture Feed Device

Materials

Elements

Walls Ceilings Connections / Plates Reinforcing Roof / Floor Openings

About this detail

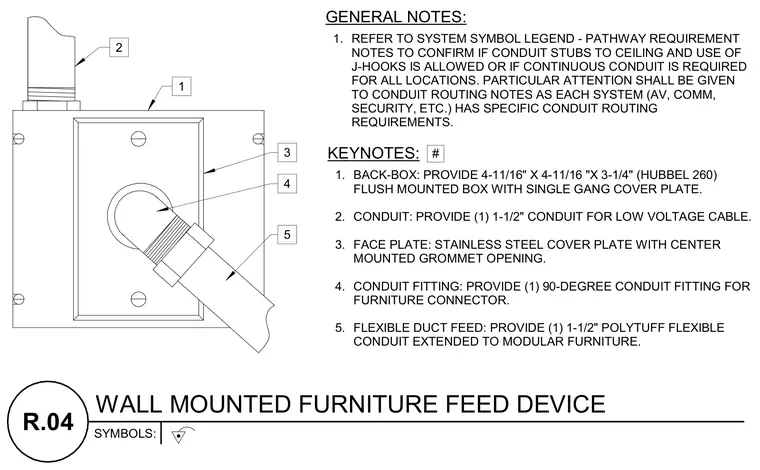

This wall mounted furniture feed device assembly utilizes a 4-11/16" by 4-11/16" by 3-1/4" flush-mounted back-box fitted with a single gang cover plate. A one-and-a-half-inch conduit connects to the top for low-voltage cabling, while a ninety-degree conduit fitting accommodates the furniture connector. A stainless steel faceplate featuring a center-mounted grommet opening finishes the front. A one-and-a-half-inch Polytuff flexible conduit extends from the fitting to the modular furniture.
