Typical Conduit to Cable Tray Detail

Materials

Elements

About this detail

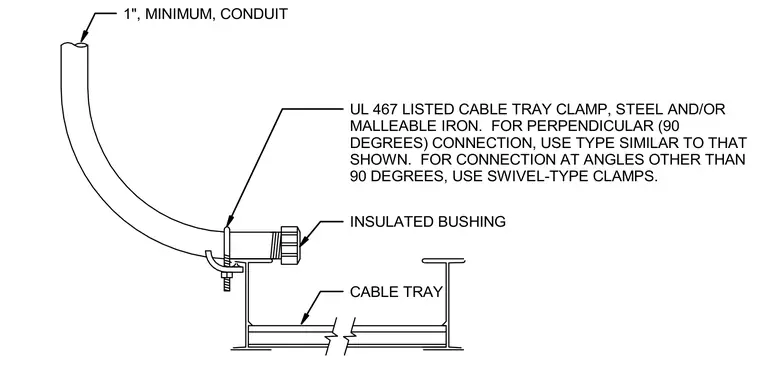

An electrical conduit of one inch minimum attaches to a steel cable tray using a UL 467 listed steel or malleable iron cable tray clamp. The conduit terminates with an insulated bushing at the cable tray edge. Perpendicular connections use a standard fixed clamp, while angled connections require a swivel-type clamp.
