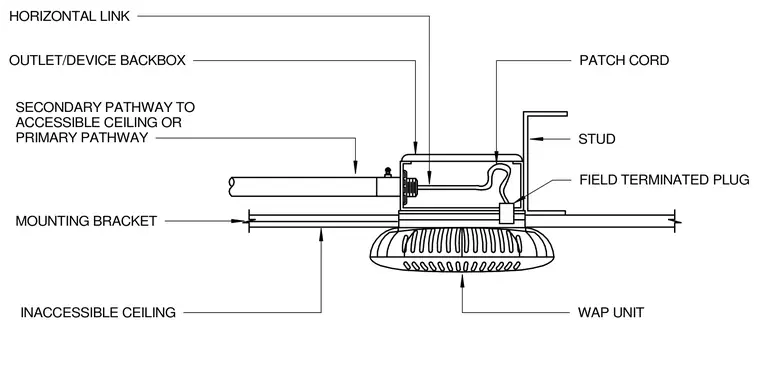

A wireless access point unit is mounted to an inaccessible ceiling using a dedicated mounting bracket and an outlet device backbox. A horizontal link connects through a secondary pathway leading to an accessible or primary pathway. A patch cord runs from the backbox to a field-terminated plug secured near a structural stud.
FIELD TERMINATED PLUG PATCH CORD STUD WAP UNIT INACCESSIBLE CEILING MOUNTING BRACKET HORIZONTAL LINK OUTLET/DEVICE BACKBOX SECONDARY PATHWAY TO ACCESSIBLE CEILING OR PRIMARY PATHWAY
