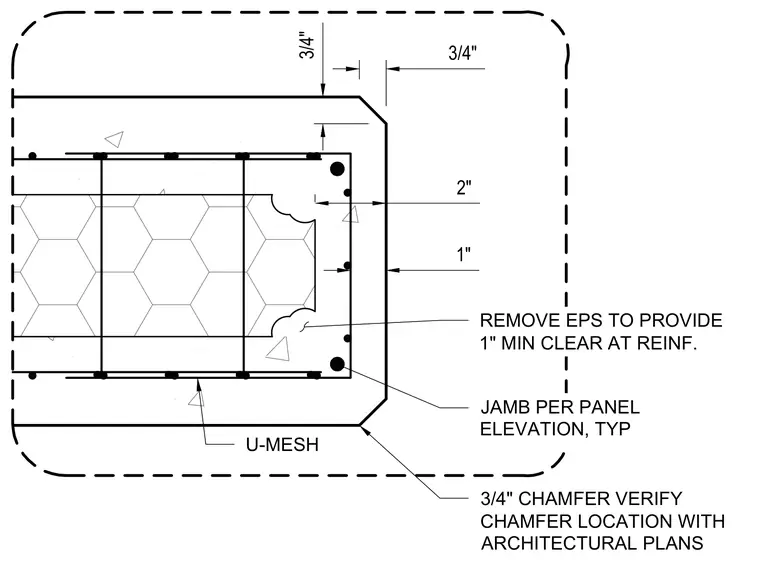

This concrete panel edge detail features an expanded polystyrene core with embedded reinforcing bars and U-mesh. Expanded polystyrene is removed locally to provide a one-inch minimum clearance at the reinforcement. The outer corner is shaped with a three-quarter-inch chamfer, with its location verified against architectural plans. The jamb configuration matches the typical panel elevation.
JAMB PER PANEL ELEVATION, TYP 1" REMOVE EPS TO PROVIDE 1" MIN CLEAR AT REINF. 2" 3/4" 3/4" 3/4" CHAMFER VERIFY CHAMFER LOCATION WITH ARCHITECTURAL PLANS U-MESH
