Telecommunications · T-GV9X3

Power Strip and Dedicated Receptacle Label

Elements

About this detail

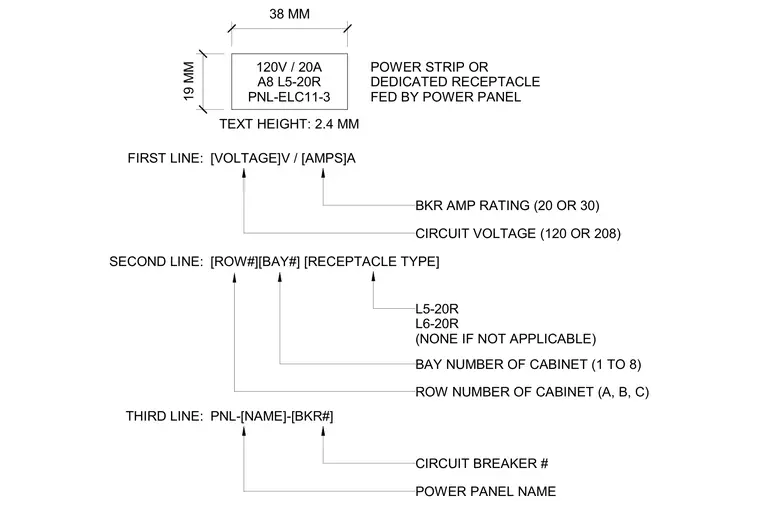

A standardized label layout specifies circuit voltage, amperage rating, cabinet coordinates, receptacle type, and feeding power panel designation for server racks and equipment cabinets. The first line indicates the circuit voltage and breaker ampere rating such as 120V and 20A. The second line denotes the cabinet row and bay number alongside the receptacle type like L5-20R or L6-20R. The third line identifies the source power panel name and associated circuit breaker number. Overall label dimensions measure thirty-eight millimeters wide by nineteen millimeters high with a text height of two point four millimeters.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
