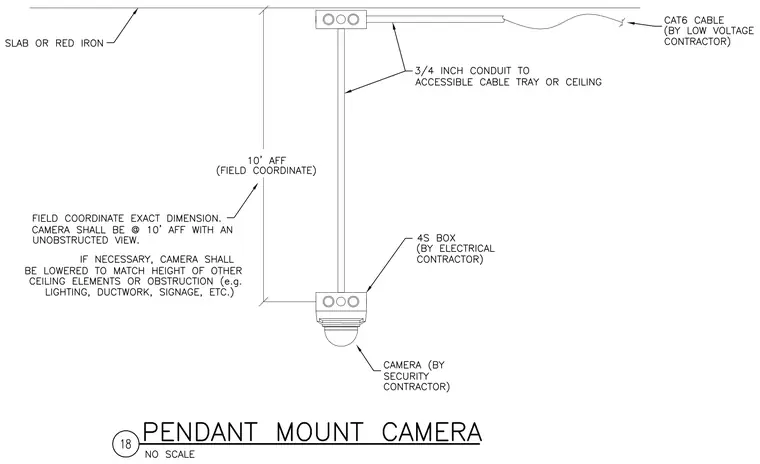

A pendant-mounted security camera suspends from an overhead slab or red iron structure using a three-quarter inch conduit routed to an accessible cable tray or ceiling. A four-inch square junction box provided by the electrical contractor connects the conduit drop to the security camera unit. CAT6 cabling supplied by the low-voltage contractor routes through the assembly to the camera. The installation targets a nominal ten feet above finished floor, subject to field coordination and adjustments to clear lighting, ductwork, or signage obstructions.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
