Telecommunications · T-GNSJV

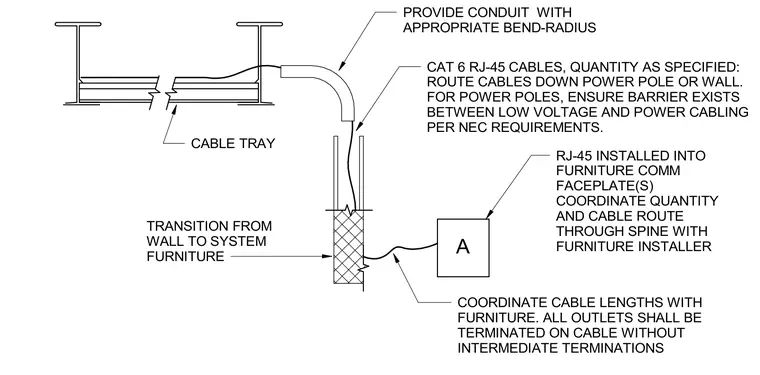

Communications Outlet and Power Pole Cabling Detail

Elements

About this detail

CAT 6 RJ-45 cables route from an overhead cable tray down a power pole or wall through a conduit with an appropriate bend radius. For power poles, a physical barrier must exist between low voltage and power cabling per National Electrical Code requirements. Cables transition from the wall to system furniture and terminate into furniture communication faceplates without intermediate terminations, coordinating quantities and cable routes with the furniture installer.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
