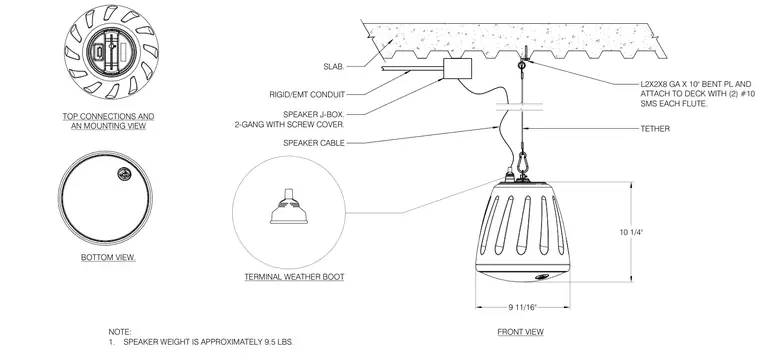

A pendant speaker weighing approximately 9.5 pounds hangs from an overhead concrete slab and metal deck assembly. The speaker fixture is suspended using a tether and a 10-inch bent plate steel angle attached to the metal deck flute with two number-10 sheet metal screws. Electrical feeds are supplied via rigid or EMT conduit connected to a two-gang speaker junction box with a screw cover.
BOTTOM VIEW. TOP CONNECTIONS AND AN MOUNTING VIEW 10 1/4" 9 11/16" TERMINAL WEATHER BOOT TETHER FRONT VIEW SLAB. RIGID/EMT CONDUIT SPEAKER J-BOX. 2-GANG WITH SCREW COVER. NOTE: 1. SPEAKER WEIGHT IS APPROXIMATELY 9.5 LBS. SPEAKER CABLE L2X2X8 GA X 10" BENT PL AND ATTACH TO DECK WITH (2) #10 SMS EACH FLUTE.
