Conduit for 120V Power Circuit

Elements

About this detail

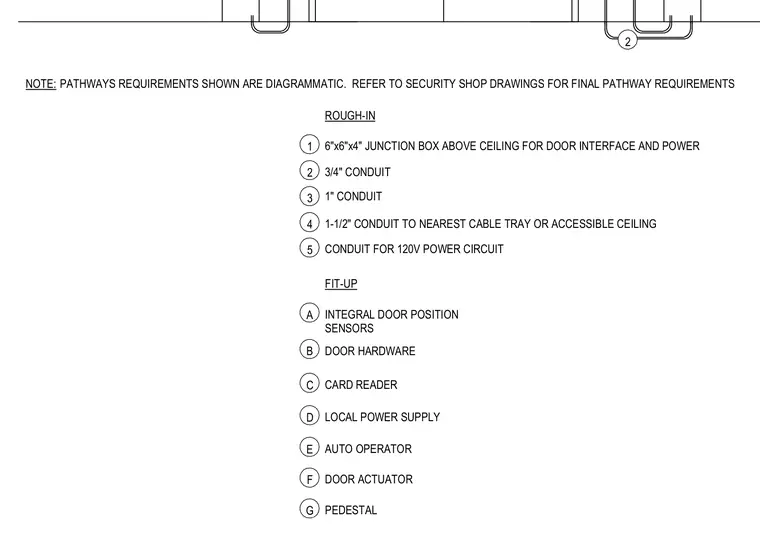

A six-by-six-by-four-inch junction box is mounted above the ceiling to support door interface and power routing. Three-quarter-inch, one-inch, and one-and-a-half-inch conduits connect the junction box to the nearest cable tray or accessible ceiling, alongside a dedicated conduit for a 120-volt power circuit. Fit-up components include integral door position sensors, door hardware, a card reader, a local power supply, an auto operator, a door actuator, and a pedestal. Pathway requirements shown are diagrammatic, and final pathways must be coordinated with security shop drawings.
