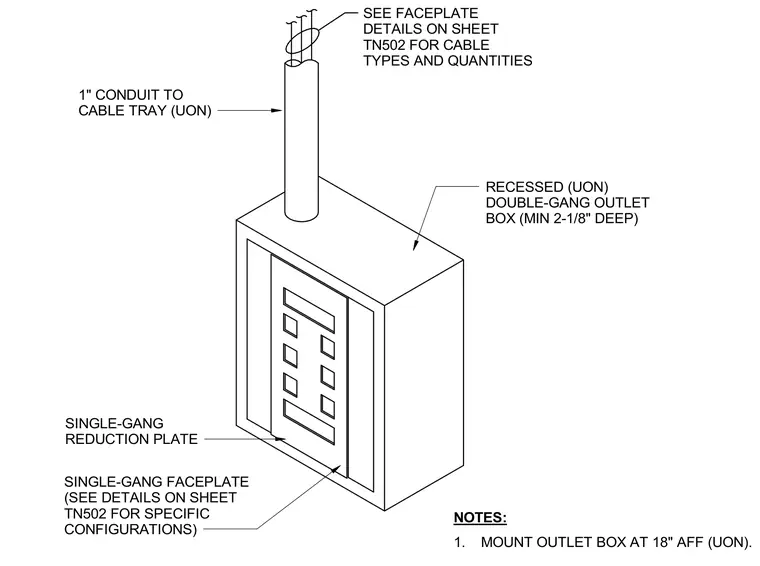

A recessed double-gang outlet box with a minimum depth of 2-1/8 inches mounts at 18 inches above finished floor unless otherwise noted. A single-gang reduction plate attaches to the outlet box to receive a single-gang faceplate for specific device configurations. A 1-inch conduit routes from the top of the box to the cable tray unless otherwise noted. Cable types and quantities are detailed on sheet TN502.
SEE FACEPLATE DETAILS ON SHEET TN502 FOR CABLE TYPES AND QUANTITIES NOTES: 1. MOUNT OUTLET BOX AT 18" AFF (UON). RECESSED (UON) DOUBLE-GANG OUTLET BOX (MIN 2-1/8" DEEP) SINGLE-GANG REDUCTION PLATE SINGLE-GANG FACEPLATE (SEE DETAILS ON SHEET TN502 FOR SPECIFIC CONFIGURATIONS) 1" CONDUIT TO CABLE TRAY (UON)
