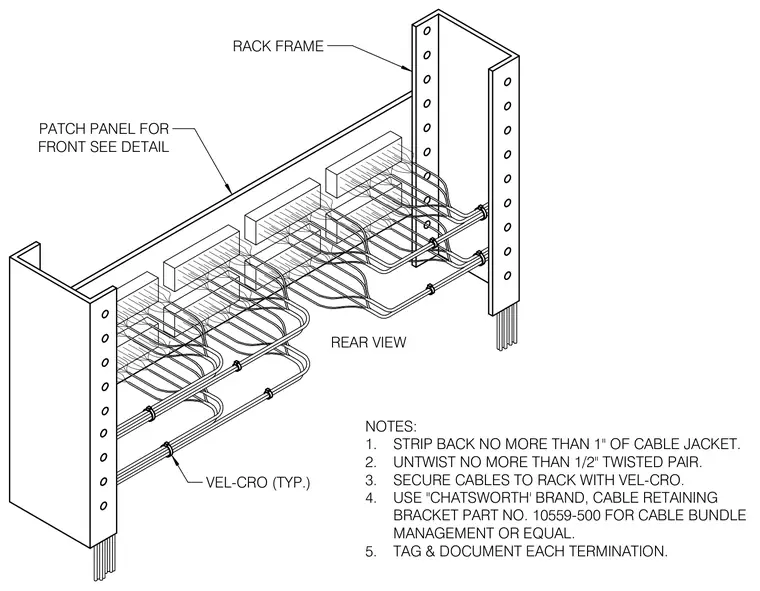

Cables are secured to the rack frame using hook-and-loop fasteners typically at each bundle interval. Cable jackets are stripped back no more than one inch, and twisted pairs are untwisted no more than half an inch. Cable bundle management utilizes Chatsworth brand cable retaining bracket part number 10559-500 or equal. Each termination is tagged and documented for identification.
VEL-CRO (TYP.) REAR VIEW RACK FRAME PATCH PANEL FOR FRONT SEE DETAIL NOTES: 1. STRIP BACK NO MORE THAN 1" OF CABLE JACKET. 2. UNTWIST NO MORE THAN 1/2" TWISTED PAIR. 3. SECURE CABLES TO RACK WITH VEL-CRO. 4. USE "CHATSWORTH' BRAND, CABLE RETAINING BRACKET PART NO. 10559-500 FOR CABLE BUNDLE MANAGEMENT OR EQUAL. 5. TAG & DOCUMENT EACH TERMINATION.
