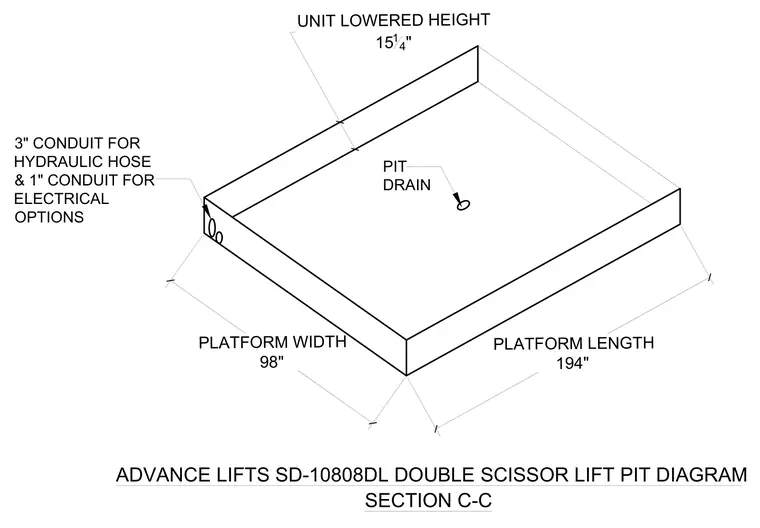

An Advance Lifts SD-10808DL double scissor lift pit is detailed with an overall platform length of 194 inches and a platform width of 98 inches. The unit lowered height measures 15 1/4 inches. A pit drain is located within the platform floor. A 3-inch conduit for hydraulic hose and a 1-inch conduit for electrical options are provided at the side.
PIT DRAIN PLATFORM LENGTH 194" PLATFORM WIDTH 98" 3" CONDUIT FOR HYDRAULIC HOSE & 1" CONDUIT FOR ELECTRICAL OPTIONS UNIT LOWERED HEIGHT 15 1 4 " ADVANCE LIFTS SD-10808DL DOUBLE SCISSOR LIFT PIT DIAGRAM SECTION C-C
