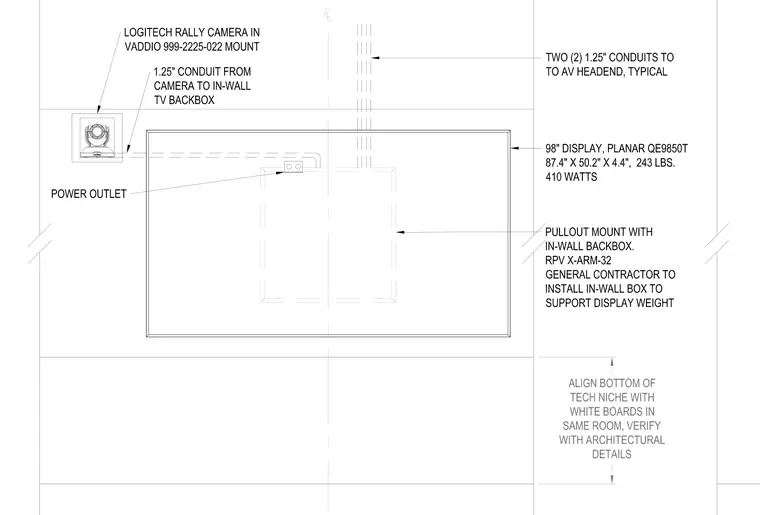

A 98-inch Planar QE9850T display weighing 243 pounds is mounted using a pullout mount with an in-wall backbox. A Logitech Rally camera in a Vaddio mount is positioned above the display and connected via a 1.25-inch conduit to the in-wall television backbox. Two 1.25-inch conduits route upward from the display to the audio-visual headend. A power outlet is located within the backbox footprint, and the general contractor must install the in-wall box to structurally support the display weight.
