LCD Display Wall Mount and AV Box Installation

Elements

About this detail

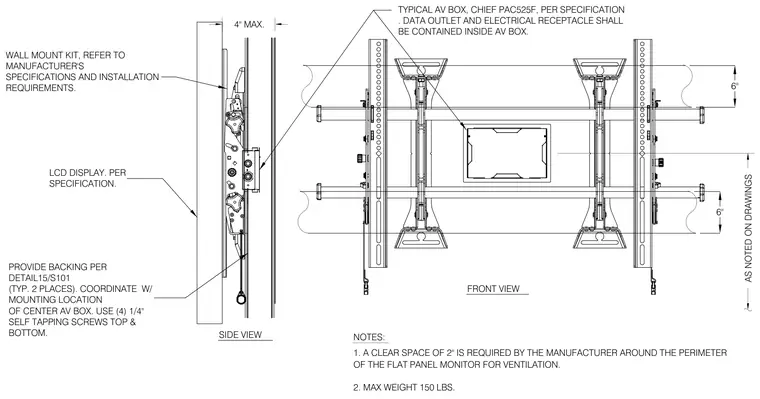

A wall mount kit secures an LCD display to a framed wall with required backing provided per structural details. A typical AV box, such as Chief PAC525F, houses the data outlet and electrical receptacle. Four one-quarter inch self-tapping screws secure the top and bottom of the AV box. The manufacturer requires a two-inch clear space around the perimeter of the flat panel monitor for ventilation, supporting a maximum weight of 150 pounds.
