Telecommunications · T-F5NF6

Cabinet Power Label

Elements

About this detail

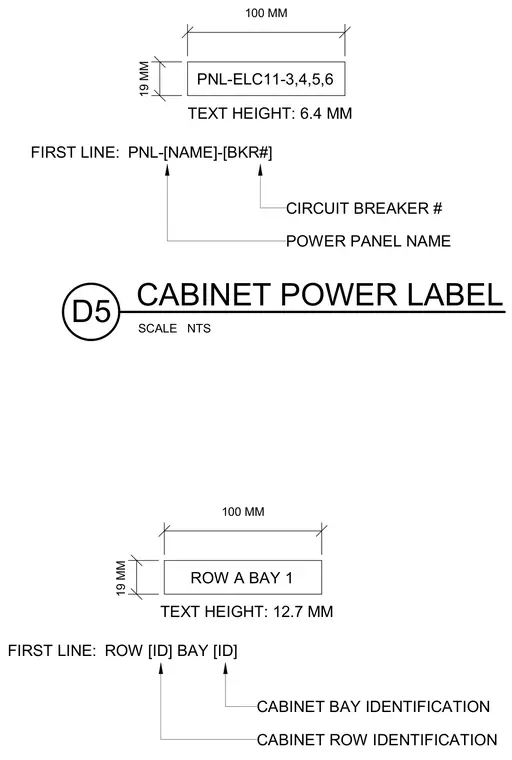

Telecommunications equipment labeling details define the dimensions and typography standards for cabinet power and bay identification tags. The power label measures 100 millimeters wide by 19 millimeters high with a 6.4 millimeter text height, displaying the power panel name and circuit breaker number in the format PNL-[NAME]-[BKR#]. The bay identification label shares the same physical dimensions with a 12.7 millimeter text height, displaying the cabinet row and bay identification in the format ROW [ID] BAY [ID].
