Telecommunications · T-F3XC8

Double Door Access Control Rough-In Detail

Elements

About this detail

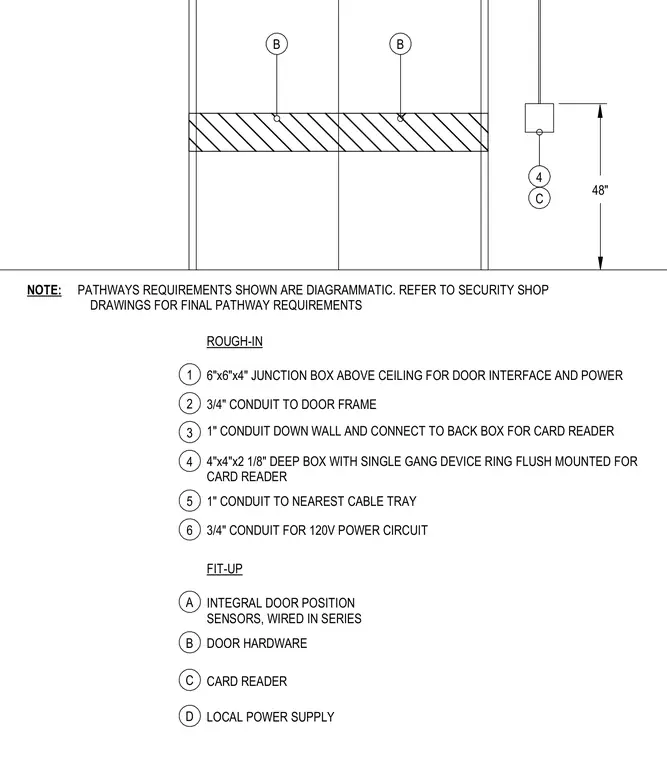

A six-inch by six-inch by four-inch junction box is mounted above the ceiling for door interface and power routing, with a three-quarter-inch conduit extending to the door frame and another three-quarter-inch conduit dedicated to the 120V power circuit. A one-inch conduit runs down the wall to connect to a four-inch by four-inch by two-and-one-eighth-inch deep back box with a single gang device ring, flush-mounted at forty-eight inches for the card reader. An additional one-inch conduit extends to the nearest cable tray for telecommunications pathways. Integral door position sensors are wired in series, alongside door hardware, a local power supply, and the card reader.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
