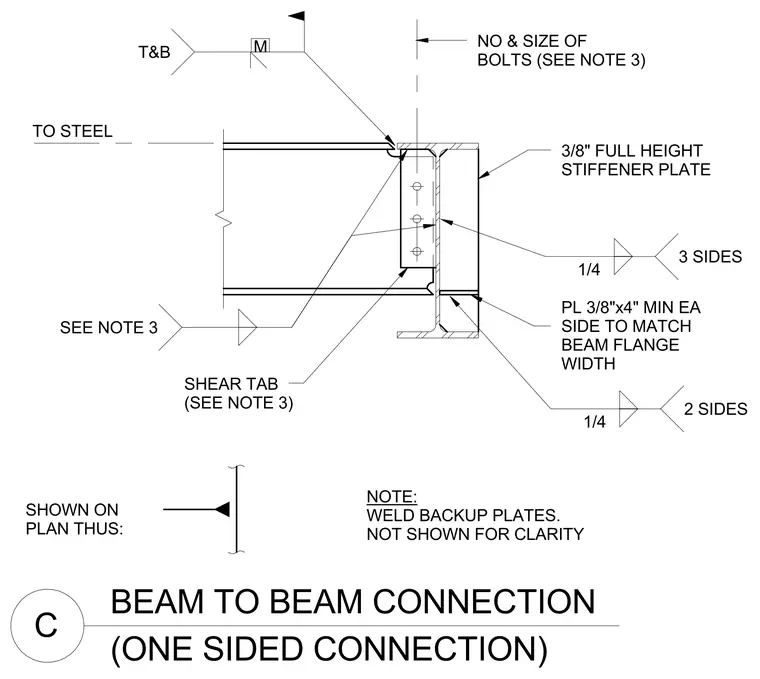

A secondary steel beam connects to a primary supporting steel beam through a single-plate shear tab welded to the web. The connection is secured with bolts sized per note three through the shear tab and supported beam web. A three-eighths-inch full-height stiffener plate with a minimum width matching the beam flange is welded to the web and flanges using quarter-inch fillet welds on two or three sides as specified. Weld backup plates are included in the assembly but omitted from the drawing view for clarity.
BEAM TO BEAM CONNECTION C (ONE SIDED CONNECTION) SHOWN ON PLAN THUS: TO STEEL NOTE: WELD BACKUP PLATES. NOT SHOWN FOR CLARITY NO & SIZE OF BOLTS (SEE NOTE 3) SHEAR TAB (SEE NOTE 3) 3/8" FULL HEIGHT STIFFENER PLATE PL 3/8"x4" MIN EA SIDE TO MATCH BEAM FLANGE WIDTH M T&B 1/4 3 SIDES SEE NOTE 3 1/4 2 SIDES
