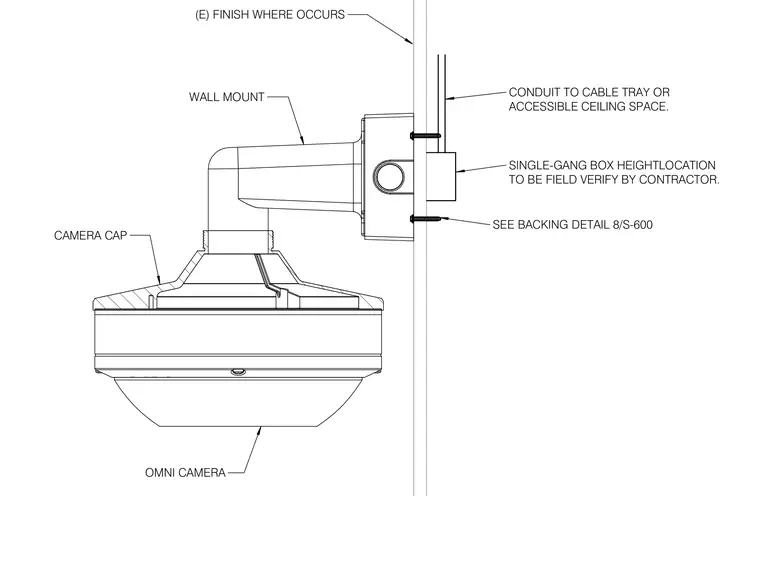

The multi-sensor camera is attached to a wall mount arm connected to a single-gang electrical box mounted on the wall. Conduit extends from the box to a cable tray or accessible ceiling space. The exact box height and location are field verified by the contractor, and wall backing is coordinated per detail eight on sheet S-600. Existing finishes occur around the mounting location as indicated.
WALL MOUNT CAMERA CAP OMNI CAMERA (E) FINISH WHERE OCCURS CONDUIT TO CABLE TRAY OR ACCESSIBLE CEILING SPACE. SINGLE-GANG BOX HEIGHTLOCATION TO BE FIELD VERIFY BY CONTRACTOR. SEE BACKING DETAIL 8/S-600
