Pendant Loudspeaker Detail

Materials

Elements

About this detail

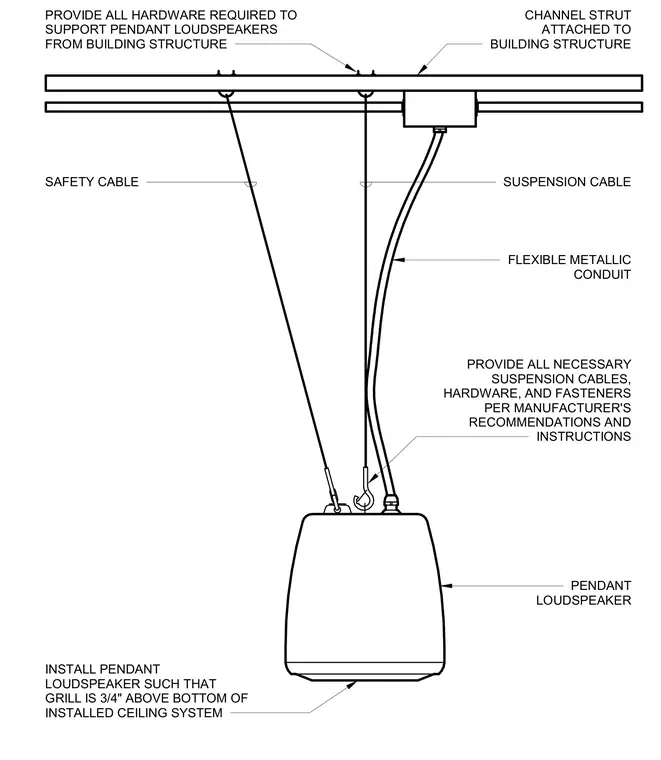

A pendant loudspeaker is suspended from the building structure using a channel strut attached overhead. A primary suspension cable and a safety cable support the speaker fixture, while a flexible metallic conduit routes electrical wiring to the unit. All necessary suspension cables, hardware, and fasteners are installed per the manufacturer's recommendations and instructions. The loudspeaker is positioned so that its grill sits three-quarters of an inch above the bottom of the installed ceiling system.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
