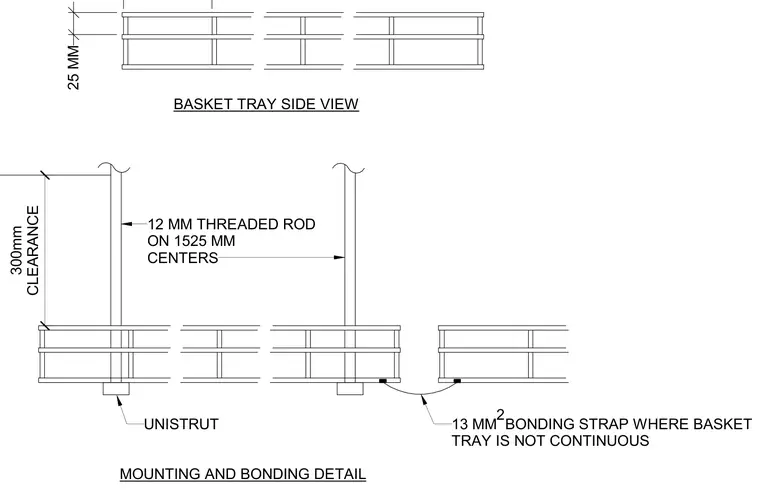

Cable basket trays are suspended using 12 millimeter threaded rods spaced at 1525 millimeter centers. A Unistrut channel provides mounting support beneath the tray assembly. A 300 millimeter vertical clearance is maintained above the tray. A 13 square millimeter bonding strap bridges the joints where the basket tray is not continuous.
UNISTRUT MOUNTING AND BONDING DETAIL BASKET TRAY SIDE VIEW 13 MM BONDING STRAP WHERE BASKET TRAY IS NOT CONTINUOUS 12 MM THREADED ROD ON 1525 MM CENTERS 25 MM 2 300mm CLEARANCE
