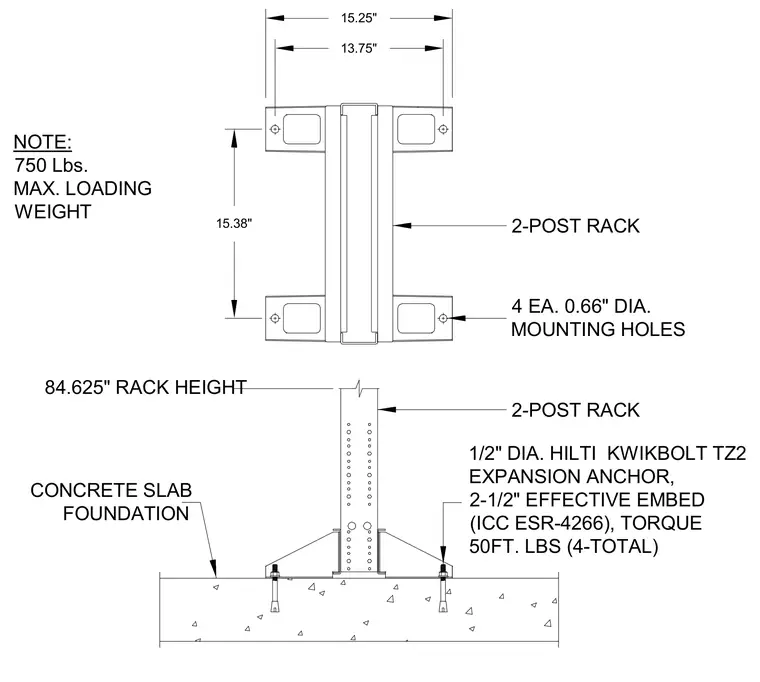

A two-post rack with a height of 84.625 inches and a maximum loading weight of 750 pounds is secured to a concrete slab foundation. Four 0.66-inch diameter mounting holes are provided at the base plate. The rack is anchored using four 1/2-inch diameter Hilti Kwik Bolt TZ2 expansion anchors with a 2-1/2-inch effective embedment, installed with a torque of 50 foot-pounds.
15.25" 13.75" 15.38" 2-POST RACK 4 EA. 0.66" DIA. MOUNTING HOLES 1/2" DIA. HILTI KWIKBOLT TZ2 EXPANSION ANCHOR, 2-1/2" EFFECTIVE EMBED (ICC ESR-4266), TORQUE 50FT. LBS (4-TOTAL) 2-POST RACK CONCRETE SLAB FOUNDATION 84.625" RACK HEIGHT NOTE: 750 Lbs. MAX. LOADING WEIGHT
