The wall panel assembly incorporates a P-3 embed plate anchored by welded headed studs and reinforced with four number four vertical bars and two number four U-bars per HSA layer. The joist seats on the wall panel with two three-quarter-inch diameter welded headed studs spaced at twenty-four inches on center maximum between joists. The truss girder connects to the wall panel with six three-quarter-inch diameter welded headed studs at each truss ledger and seat provided by others. Additional panel joint conditions are referenced on details eleven and twelve.

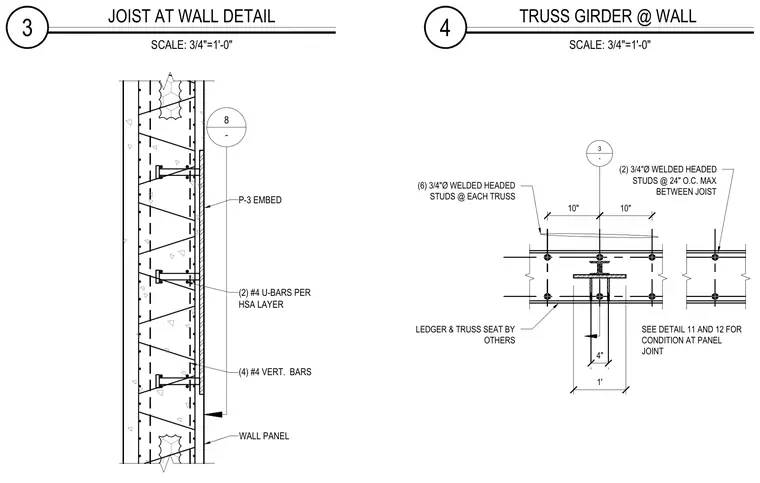

3 JOIST AT WALL DETAIL SCALE: 3/4"=1'-0" 4 TRUSS GIRDER @ WALL SCALE: 3/4"=1'-0" (4) #4 VERT. BARS (2) #4 U-BARS PER HSA LAYER WALL PANEL 8 - P-3 EMBED 10" 10" 1' 4" 3 - (2) 3/4"Ø WELDED HEADED STUDS @ 24" O.C. MAX BETWEEN JOIST (6) 3/4"Ø WELDED HEADED STUDS @ EACH TRUSS LEDGER & TRUSS SEAT BY OTHERS SEE DETAIL 11 AND 12 FOR CONDITION AT PANEL JOINT
