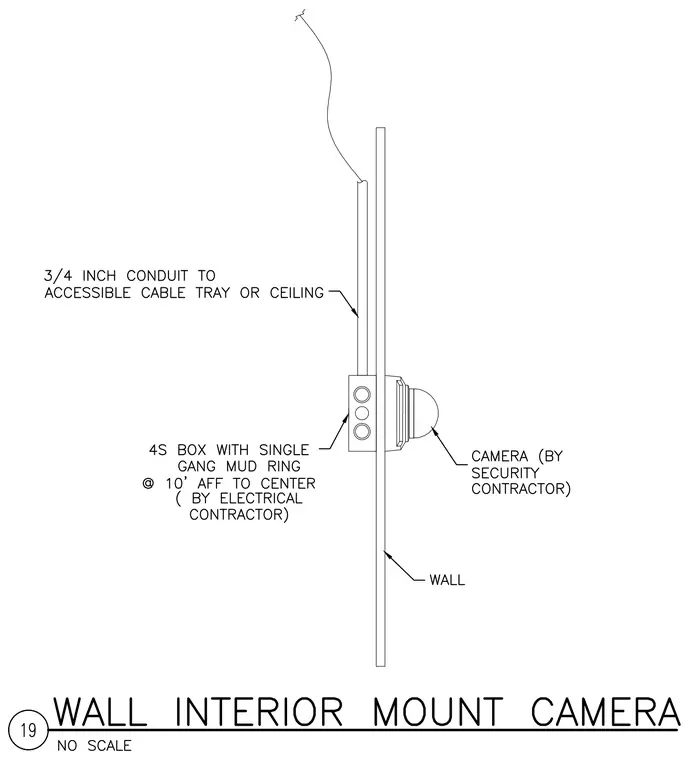

A security camera is mounted to the interior wall and connected to a four-inch square electrical box fitted with a single-gang mud ring positioned at ten feet above finished floor to center by the electrical contractor. A three-quarter-inch conduit routes from the box up to an accessible cable tray or ceiling. The camera itself is installed by the security contractor.
