Typical Faceplate Details

Elements

About this detail

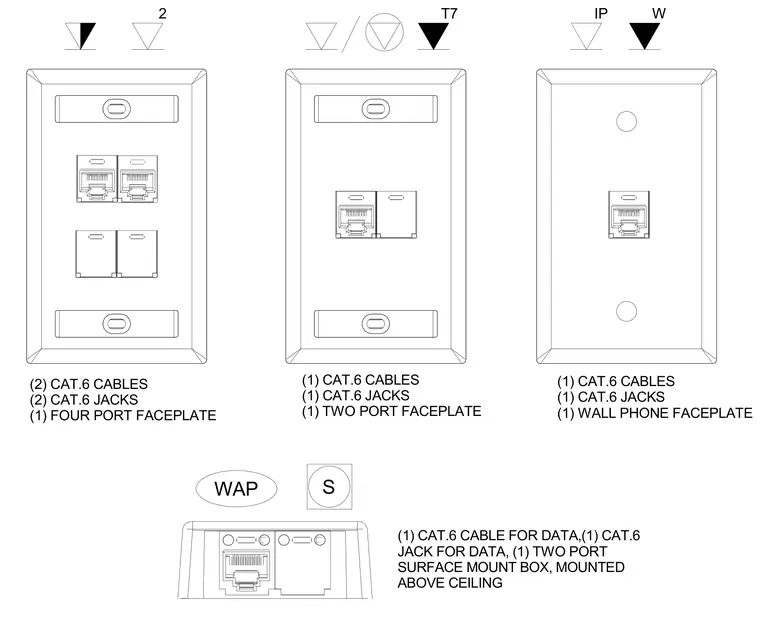

Telecommunication faceplate assemblies detail standard data drop configurations using Category 6 cabling and jacks. A four-port faceplate accommodates two Category 6 cables and two jacks alongside mounting openings. A two-port faceplate features one Category 6 cable and one jack. A wall phone faceplate provides a single Category 6 cable and jack interface. An above-ceiling surface mount box houses a two-port configuration with one Category 6 data cable and jack.
