Typical Maintenance Hole Vault 6'x8'x7'

Materials

Elements

About this detail

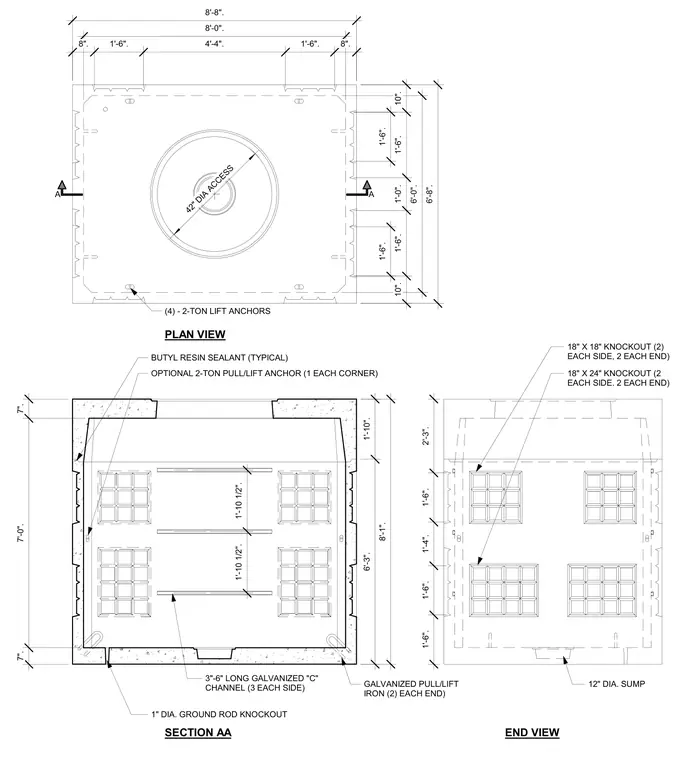

Precast concrete utility vault featuring a forty-two inch diameter access opening, four two-ton lift anchors, butyl resin sealant at joints, and optional two-ton pull and lift anchors at each corner. The assembly includes three-foot six-inch long galvanized C-channels on three sides, a one-inch diameter ground rod knockout, and galvanized pull and lift iron at each end. Side and end views detail eighteen by eighteen inch and eighteen by twenty-four inch knockouts along with a twelve-inch diameter sump.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
