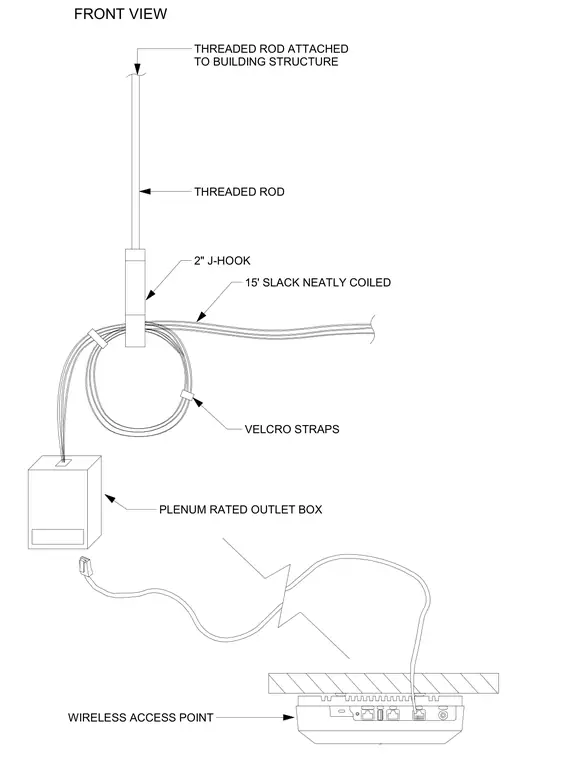

A wireless access point connects to a plenum-rated outlet box and routes cabling supported by a two-inch J-hook. The J-hook hangs from a threaded rod secured directly to the building structure. Excess cable features fifteen feet of neatly coiled slack secured with velcro straps.
FRONT VIEW 2" J-HOOK VELCRO STRAPS THREADED ROD ATTACHED TO BUILDING STRUCTURE THREADED ROD 15' SLACK NEATLY COILED WIRELESS ACCESS POINT PLENUM RATED OUTLET BOX
