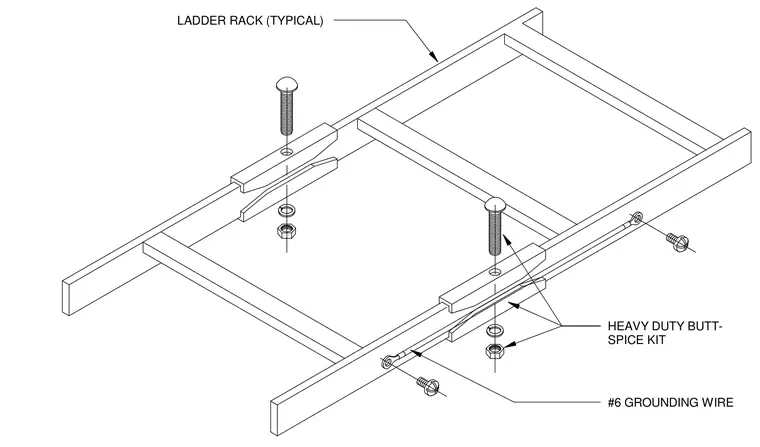

Typical telecommunications cable ladder rack sections are joined end-to-end using heavy duty buttsplice kit hardware secured with bolts, washers, and nuts. A number six grounding wire is mechanically fastened across the splice joint to maintain electrical continuity between ladder sections.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
