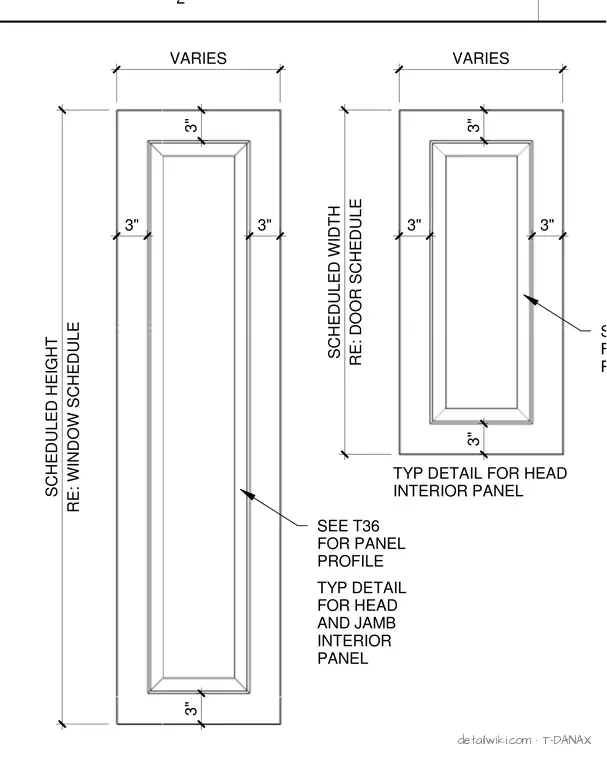

The drawing shows two paneled elevation details with dimensions indicating scheduled widths and heights referencing door and window schedules. One detail indicates typical dimensions for head and jamb interior panels, while the other notes typical details for head interior panels. Notes direct the viewer to detail T36 for panel profiles.
Text on the drawing
3" 3" VARIES RE: WINDOW SCHEDULE SCHEDULED HEIGHT SEE T36 FOR PANEL PROFILE 3" 3" 3" 3" VARIES RE: DOOR SCHEDULE SCHEDULED WIDTH SEE T36 FOR PANEL PROFILE TYP DETAIL FOR HEAD INTERIOR PANEL 3" 3" TYP DETAIL FOR HEAD AND JAMB INTERIOR PANEL 2
