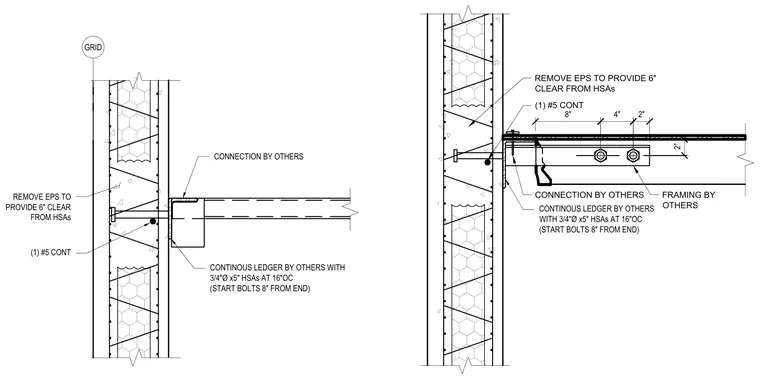

A continuous ledger by others attaches to an insulated wall using three-quarter-inch diameter by five-inch heavy stud anchors at sixteen inches on center, starting bolts eight inches from the end. EPS insulation is removed to provide a six-inch clearance from the heavy stud anchors. One continuous number five reinforcing bar is installed alongside the connection. Framing and associated connections are provided by others.
2" 8" 2" 4" FRAMING BY OTHERS CONNECTION BY OTHERS REMOVE EPS TO PROVIDE 6" CLEAR FROM HSAs (1) #5 CONT CONTINOUS LEDGER BY OTHERS WITH 3/4"Ø x5" HSAs AT 16"OC (START BOLTS 8" FROM END) (1) #5 CONT GRID CONNECTION BY OTHERS REMOVE EPS TO PROVIDE 6" CLEAR FROM HSAs CONTINOUS LEDGER BY OTHERS WITH 3/4"Ø x5" HSAs AT 16"OC (START BOLTS 8" FROM END)
