Telecommunications · T-D6C3H

Camera Fiber Data Device

Elements

About this detail

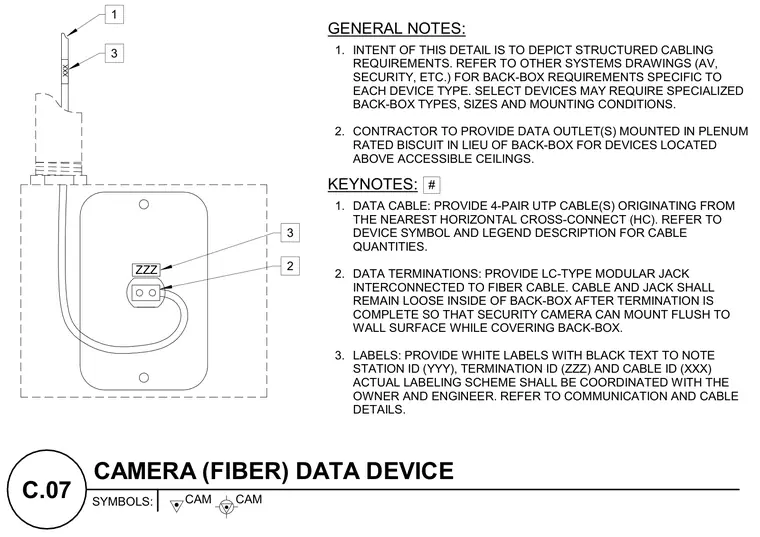

Structured cabling requirements for a camera fiber data device, featuring a four-pair unshielded twisted pair cable originating from the nearest horizontal cross-connect and terminating with an LC-type modular jack. The cable and jack remain loose inside the back-box after termination to allow the security camera to mount flush to the wall surface while covering the back-box. White labels with black text denote the station ID, termination ID, and cable ID. For devices located above accessible ceilings, the contractor provides data outlets mounted in a plenum rated biscuit in lieu of a back-box.
