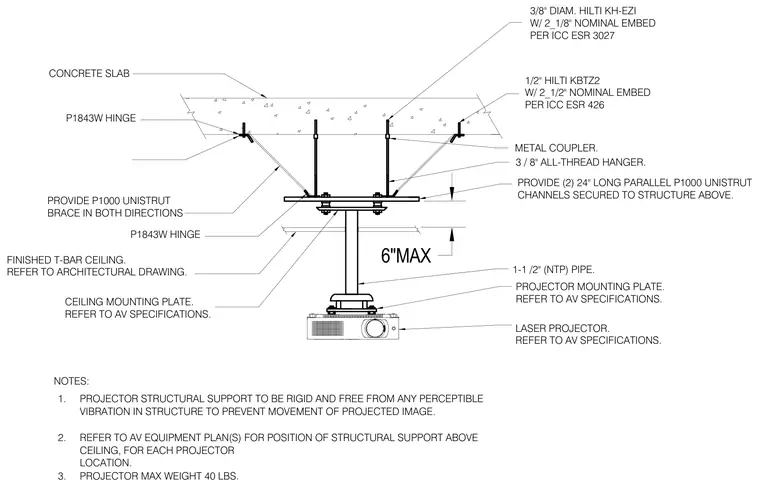

A laser projector is suspended below a finished T-bar ceiling using a 1-1/2-inch National Pipe Thread pipe connected to an overhead mounting plate. The assembly hangs from two 24-inch long parallel P1000 Unistrut channels secured to the concrete slab above using 1/2-inch Hilti KBTZ2 expansion anchors with 2-1/2-inch nominal embedment and 3/8-inch diameter Hilti KH-EZI concrete screw anchors with 2-1/8-inch nominal embedment. Three-eighths-inch all-thread hangers and P1000 Unistrut braces running in both directions provide lateral bracing attached to the concrete slab with P1843W hinge metal couplers. The structural support requires rigidity free from perceptible vibration to prevent image movement for a maximum projector weight of 40 pounds.
CONCRETE SLAB PROVIDE P1000 UNISTRUT BRACE IN BOTH DIRECTIONS FINISHED T-BAR CEILING. REFER TO ARCHITECTURAL DRAWING. CEILING MOUNTING PLATE. REFER TO AV SPECIFICATIONS. LASER PROJECTOR. REFER TO AV SPECIFICATIONS. 3 / 8" ALL-THREAD HANGER. PROVIDE (2) 24" LONG PARALLEL P1000 UNISTRUT CHANNELS SECURED TO STRUCTURE ABOVE. 1-1 /2" (NTP) PIPE. PROJECTOR MOUNTING PLATE. REFER TO AV SPECIFICATIONS. P1843W HINGE METAL COUPLER. P1843W HINGE NOTES: 1. PROJECTOR STRUCTURAL SUPPORT TO BE RIGID AND FREE FROM ANY PERCEPTIBLE VIBRATION IN STRUCTURE TO PREVENT MOVEMENT OF PROJECTED IMAGE. 2. REFER TO AV EQUIPMENT PLAN(S) FOR POSITION OF STRUCTURAL SUPPORT ABOVE CEILING, FOR EACH PROJECTOR LOCATION. 3. PROJECTOR MAX WEIGHT 40 LBS. 1/2" HILTI KBTZ2 W/ 2_1/2" NOMINAL EMBED PER ICC ESR 426 3/8" DIAM. HILTI KH-EZI W/ 2_1/8" NOMINAL EMBED PER ICC ESR 3027 6"MAX
