Communications Hand-Hole Detail

Materials

About this detail

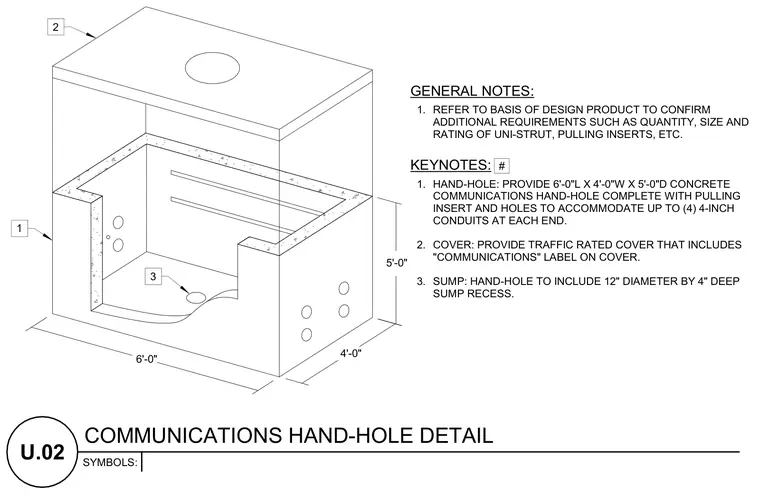

The precast or cast-in-place concrete hand-hole measures six feet long by four feet wide by five feet deep. Each end features core-drilled or formed holes to accommodate up to four four-inch conduits. The interior is equipped with pulling inserts and a twelve-inch diameter by four-inch deep sump recess at the bottom. A traffic-rated cover bearing a communications label seats flush on top of the structure.
