Runway Wall Ceiling Support Kit

Materials

Steel Cold-formed Steel Timber / Wood Masonry / CMU Metal (misc.)

Elements

Walls Stairs Ceilings Anchors / Embeds

Connections

Embed Plate Expansion / Slip Connection

About this detail

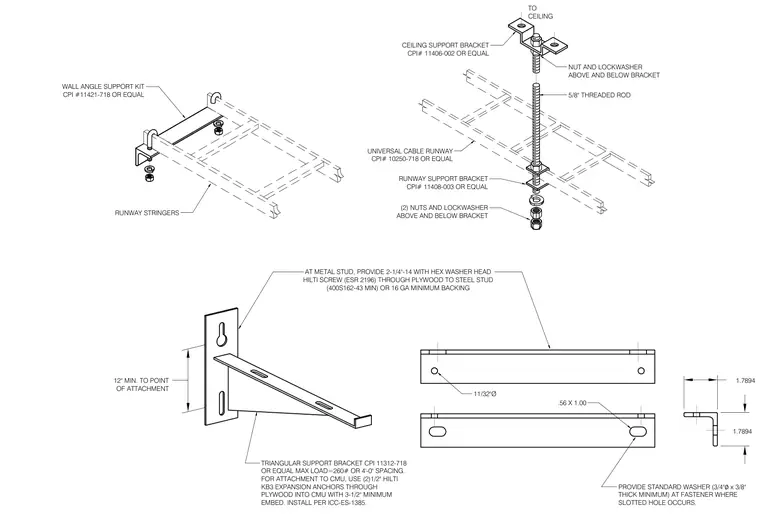

Cable runway support assemblies for wall and ceiling attachments. The ceiling support utilizes a ceiling support bracket secured to a 5/8-inch threaded rod with nuts and lockwashers above and below, connecting to a universal cable runway via a runway support bracket. The wall attachment features a triangular support bracket or wall angle support kit, anchored to concrete masonry units with two 1/2-inch Hilti KB3 expansion anchors through plywood with a 3-1/2-inch minimum embedment. For metal stud connections, 2-1/4-inch-14 Hilti screws with hex washer heads secure through plywood to 400S162-43 minimum steel studs or 16-gauge minimum backing. Standard washers measuring 3/4-inch diameter by 3/8-inch thick minimum are provided at fasteners where slotted holes occur.
