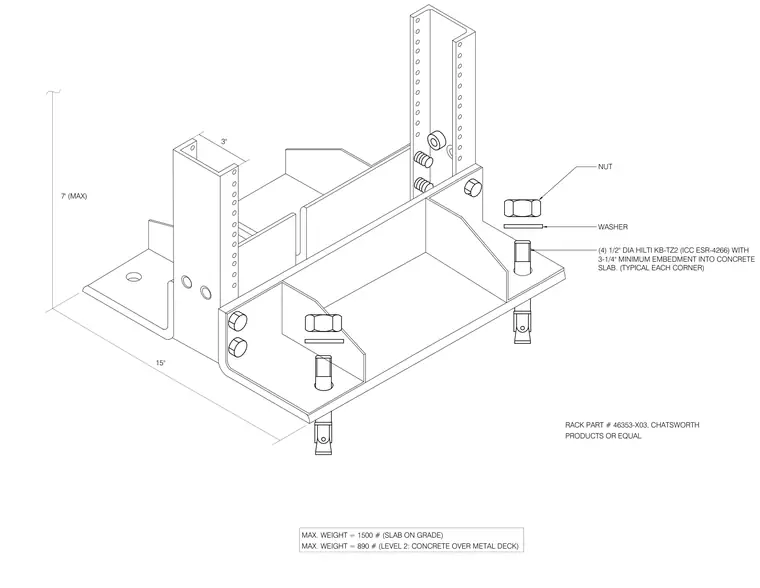

This assembly details the base mounting of a two-post telecommunications equipment rack, such as Chatsworth Products part number 46353-X03 or equal, secured to a concrete floor. Each corner base flange is anchored to the concrete slab using four one-half inch diameter Hilti KB-TZ2 expansion anchors with a three-and-one-quarter inch minimum embedment. The installation accommodates a maximum weight capacity of one thousand five hundred pounds on a slab on grade, or eight hundred ninety pounds on a level two concrete over metal deck installation. Nuts and washers secure the vertical rack channels to the base mounting plates.
NUT WASHER 7' (MAX) 3" 15" RACK PART # 46353-X03, CHATSWORTH PRODUCTS OR EQUAL MAX. WEIGHT = 1500 # (SLAB ON GRADE) MAX. WEIGHT = 890 # (LEVEL 2: CONCRETE OVER METAL DECK) (4) 1/2" DIA HILTI KB-TZ2 (ICC ESR-4266) WITH 3-1/4" MINIMUM EMBEDMENT INTO CONCRETE SLAB. (TYPICAL EACH CORNER)
