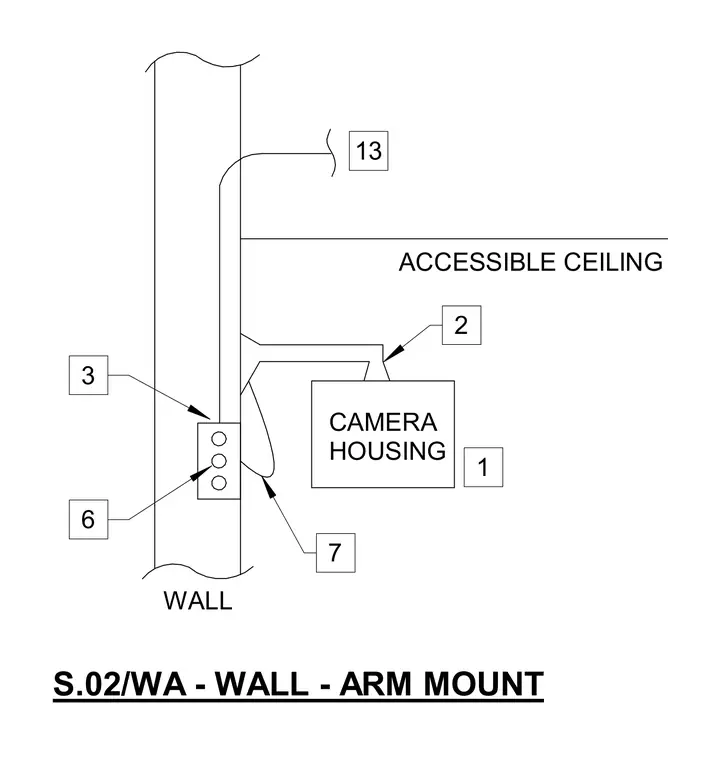

A camera housing is mounted to a wall via an arm assembly below an accessible ceiling. Cabling runs from the camera housing through the wall into a recessed junction box equipped with faceplate screws. Additional cabling loops externally from the housing into the wall penetration.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
