Telecommunications · T-CJA82

Projection Screen Housing and Ceiling Support Detail

Materials

Steel Metal (misc.)

Elements

Walls Doors Ceilings Floors / Slabs Bracing Connections / Plates

Connections

Bracing Connection

About this detail

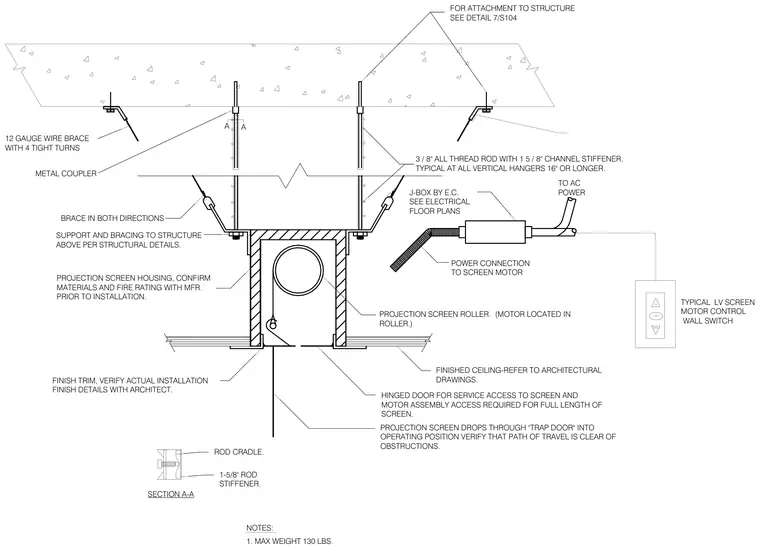

An overhead support and housing installation for a motorized projection screen is mounted above a finished ceiling. The screen housing is suspended from the concrete structure using three-eighths-inch all-thread rods equipped with one-and-five-eighths-inch channel stiffeners for vertical hangers sixteen inches or longer, supplemented by twelve-gauge wire braces with four tight turns and metal couplers for lateral stability in both directions. The housing features a hinged access door along its full length for servicing the screen and motor assembly, allowing the projection screen to drop through a trap door into its operating position. Electrical connections include a junction box wired to the screen motor and a low-voltage control wall switch.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
