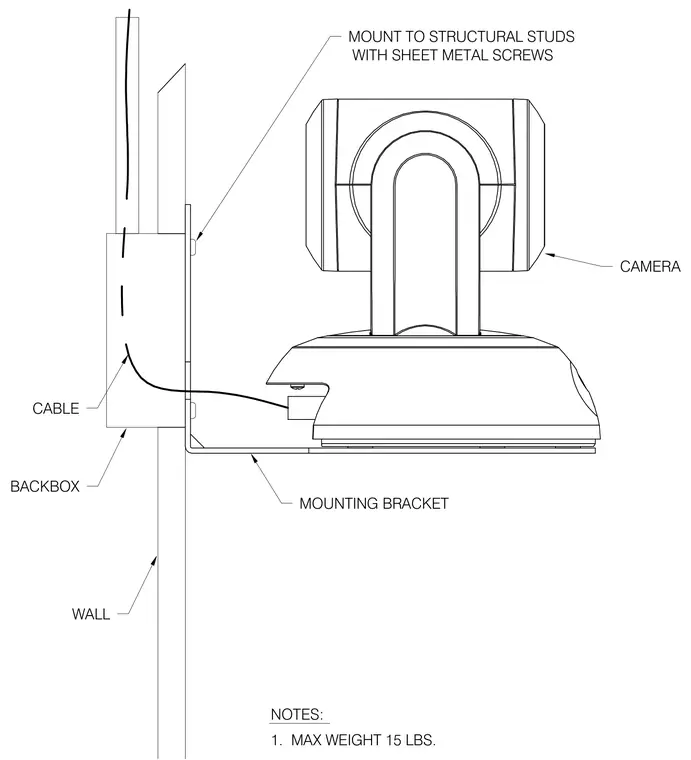

The PTZ camera is mounted on a bracket secured directly to structural wall studs using sheet metal screws. A backbox recessed into the wall conceals and routes the cable to the camera unit. The assembly supports a maximum weight of 15 lbs.
1. MAX WEIGHT 15 LBS. NOTES: CAMERA MOUNTING BRACKET BACKBOX CABLE WALL MOUNT TO STRUCTURAL STUDS WITH SHEET METAL SCREWS
