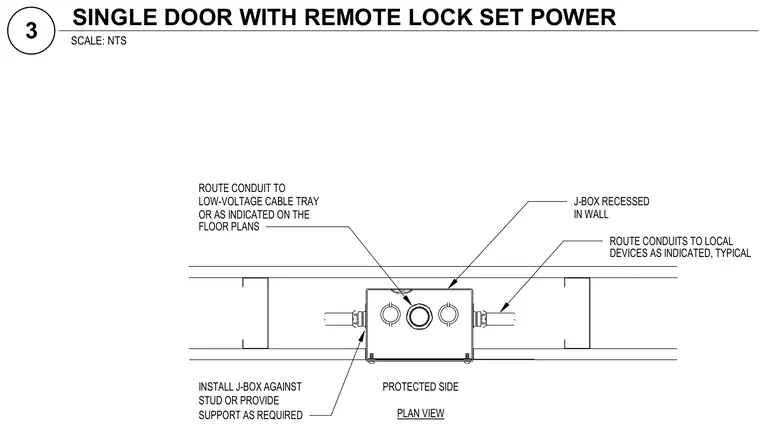

A junction box is recessed into the wall against a stud or provided with required support on the protected side. Conduit routes from the junction box to a low-voltage cable tray or as indicated on the floor plans. Additional conduits route from the junction box to local devices as typical.
ROUTE CONDUIT TO LOW-VOLTAGE CABLE TRAY OR AS INDICATED ON THE FLOOR PLANS INSTALL J-BOX AGAINST STUD OR PROVIDE SUPPORT AS REQUIRED J-BOX RECESSED IN WALL ROUTE CONDUITS TO LOCAL DEVICES AS INDICATED, TYPICAL PROTECTED SIDE PLAN VIEW SCALE: NTS 3 SINGLE DOOR WITH REMOTE LOCK SET POWER
