Cable trays penetrate a fire-rated gypsum board partition above the ceiling using G104 sleeves that extend 305 millimeters beyond the wall. The sleeves feature wall flanges and are fitted with bond bushings on each end, along with 14 square millimeter bonding straps. The cable tray stops within 250 millimeters of the fire stop on both ends, and fire stop material is provided when required per fire-rated wall specifications. The basis of design relies on the EZ Path 44+ series.

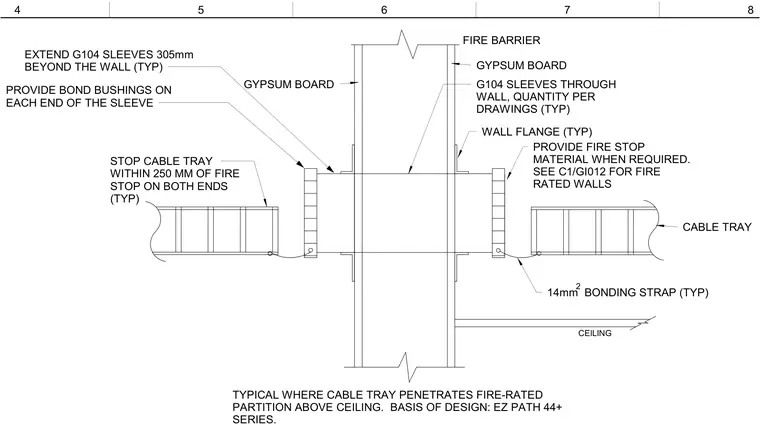

CEILING TYPICAL WHERE CABLE TRAY PENETRATES FIRE-RATED PARTITION ABOVE CEILING. BASIS OF DESIGN: EZ PATH 44+ SERIES. FIRE BARRIER GYPSUM BOARD WALL FLANGE (TYP) PROVIDE FIRE STOP MATERIAL WHEN REQUIRED. SEE C1/GI012 FOR FIRE RATED WALLS GYPSUM BOARD STOP CABLE TRAY WITHIN 250 MM OF FIRE STOP ON BOTH ENDS (TYP) CABLE TRAY 14mm BONDING STRAP (TYP) G104 SLEEVES THROUGH WALL, QUANTITY PER DRAWINGS (TYP) EXTEND G104 SLEEVES 305mm BEYOND THE WALL (TYP) PROVIDE BOND BUSHINGS ON EACH END OF THE SLEEVE 2 4 5 6 7 8
