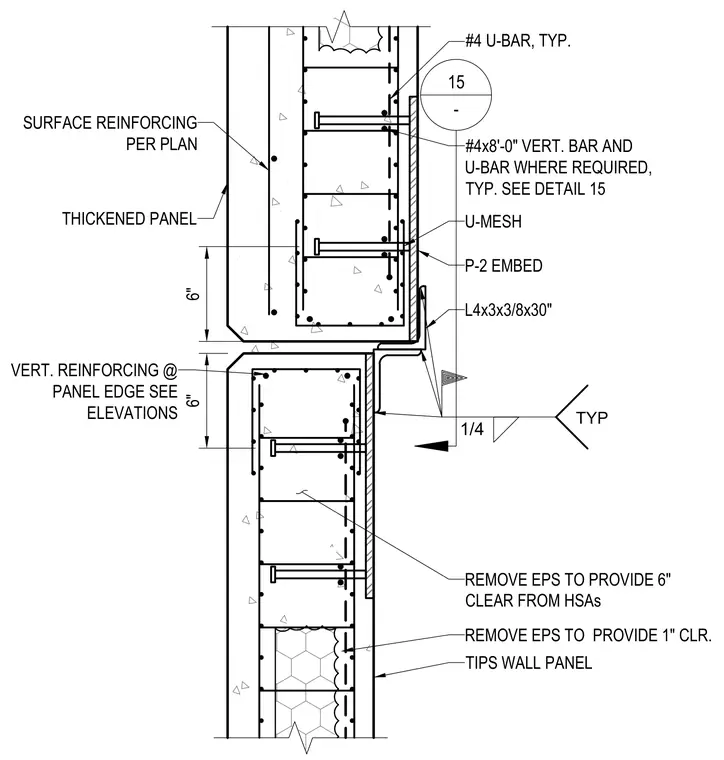

Two concrete wall panels connect vertically using embedded P-2 plates and a structural angle member. An L4x3x3/8 by 30-inch angle spans the joint and welds with a one-quarter inch fillet weld. Vertical reinforcing and number four U-bars tie into the panel edges and thickened concrete sections. Expanded polystyrene is removed locally to provide required clearances from headed stud anchors.
VERT. REINFORCING @ PANEL EDGE SEE ELEVATIONS P-2 EMBED REMOVE EPS TO PROVIDE 6" CLEAR FROM HSAs REMOVE EPS TO PROVIDE 1" CLR. #4 U-BAR, TYP. L4x3x3/8x30" U-MESH TIPS WALL PANEL THICKENED PANEL 1/4 SURFACE REINFORCING PER PLAN 15 - #4x8'-0" VERT. BAR AND U-BAR WHERE REQUIRED, TYP. SEE DETAIL 15 TYP 6" 6"
